Inline Checkweighers

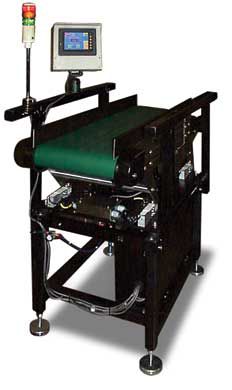

Ultra-Scale™ Series Model US-6000 Conveyor Check-Weigh Scale
The US-6000 Check-Weigh Conveyor Scale offers exceptional accuracy and reliability for continuous-feeding applications. Check-weigh bags, cartons, and finished goods to detect
and discharge out of range product.
Touch screen controlled with pop-up windows, weigh history, job saves, accuracy charts and auto tare and auto zeroing functions.
and discharge out of range product.
Touch screen controlled with pop-up windows, weigh history, job saves, accuracy charts and auto tare and auto zeroing functions.
Standard Features:
- Full Color Touch Screen
- Over/Under/Accept Display
- 96 Job Saves
- Accuracy Chart and History
- 6" or 12" wide conveyor (varies based on carton size)
- 6' infeed conveyor (varies based on quantity of cartons in que)
- DC motors with adjustable speed controls
- Painted tubular steel framework
Options: Stack Light, Exit Conveyor, Discharge Pusher/Blower
Dolphin Series
Features:
- Light Capacity up to 2000g
- Medium Speed - Maximum 100p/m
- Compact Stainless Steel Design
- Easy Cleaning and maintenance
- Designed to meet the requirements of HACCP
- Weight classification up to 5 Zones and Alarm
- Customisable operator display
- Designed and Manufactured in Australia
Standard Version - 10 Products
Capacities:
| Model | Capacity |
| 4404-LC-200 | 200g x 0.1g |
| 4404-LC-500 | 500g x 0.2g |
| 4404-LC-1000 | 1000g x 0.2g |
| 4404-LC-1500 | 1500g x 0.5g |
| 4404-LC-2000 | 2000g x 0.5g |
| Additional Information: |
| Standard RS485 ASCII and Modbus Serial I/O |
| Standard Current Loop Serial Output |
| Optional Fieldbus – DeviceNet, Profibus and CC-Link |
| Optional 4-20mA Analog Output |
| Optional Metal Detector Interface |
