Auto Bagging Machines

Funnels, Standard and Custom

Order funnels that are in stock at all times with sizes ranging from a 1" opening to a 7" opening. Custom funnels are also provided to facilitate loading. Having the proper funnel and bag size for your product is very crucial to an efficient operation.
AF-10 Accumulating Funnel

Pneumatic gate increases the speed of automatic operations by "staging" the product immediately above the bag opening. When the bag is ready to receive the product, the gate opens, enters the bag, and maintains the bag opening to reduce product spills.
CF-10 Counting Funnel

Add a photo array to the AF-10 funnel for inline bagging operations. Counts product as it enters the funnel; pneumatic funnel causes separation between counts for continuous feed operations.
LS-10 Load / Support Shelf

Supports the bottom/back of bag during loading of heavier or bulkier products. Pneumatically operated, adjustable shelf provides support and takes the initial impact of heavier products dropping into the bag. Shelf tilts downward after sealing, dropping product from the shelf. Available in various length for longer bag sizes.

Options & Accessories for the T-1000

Although the T-1000 is extensively equipped with many "built in" options, a full range of auxiliary options and equipment can easily be added for special purpose packaging or to improve your packaging operation:
PT-10 Partition Table Attachment

Stainless steel partitioned utility table keeps products separated for manual kit packaging. Two sizes available depending upon size and quantity of product. Adjustable tilt and height to fit over bagger
FS-10 Flat Seal Assembly

Decreases the possibility of wrinkles in the seal area while increasing seal integrity. Pneumatically operated opposing "fingers" pull each side of the bag taught above the seal area to flatten the seal area.
BF-10 Bag Deflator

Removes excess air from the bag. Sponge or rubber loop deflators push the air out just prior to sealing.

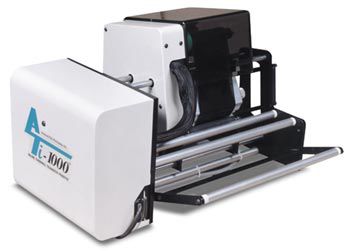

Ti-1000 Inline Thermal Transfer Printer

The latest in print head technology is here! Fast, quality printing is now available with the Ti-1000 Inline Thermal Transfer Printer. Design and print your own test, barcodes, graphics or logos directly to the surface of bags or roll stock. Floating-edge head eliminates the need to adjust the head for varying media thickness and allows for extended print head life.

Model T-300 Automatic Tabletop Bagger

Our smallest, fully automatic bagger offers increased production capabilities.  We pack a lot of features into this bagger, including touch-screen operation, “pop-up” messaging, job save/recall and interface to auto infeed equipment.  Automatic indexing, sealing, tear-off or continuous strips of bags are possible.

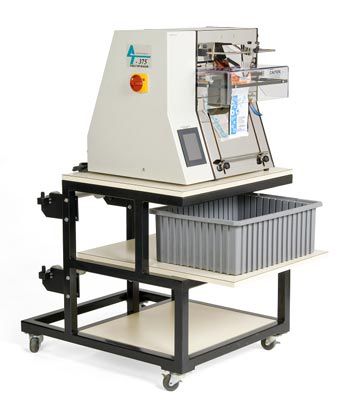

Model T-375 Automatic Tabletop Bagger/Printer “Next Bag Out

In addition to all the features of the T-300, the T-375 incorporates a thermal transfer printer for
“next-bag-out” printing. This patented feature allows for printing, just prior to loading which guarantees accurate labeling. You can now package quantities of just one part number!
  • Four color screen with pop-up windows
  • Diagnostic and troubleshooting screens
  • Preset and totalizing bag counter
  • Automatic “paced” operation with fill time delay timer
  • Universal, adjustable parts chute
  • Adjustable support shelf
  • Blower with flow controls
  • One year limited parts warranty

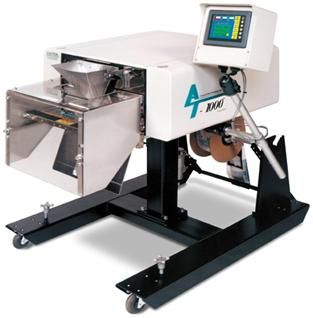

T-1000 Advanced Poly-Bagger?

Designed for long or short runs, the T-1000 has the capability of cycling over 100 bags per minute, faster than any operator could manually feed. The T-1000 is also fast enough to keep up with automatic infeed equipment including vibratory bowl counters, scales and infeed conveyors. The T-1000 Advanced Poly-Bagger? is also designed to run inline with punch/stamp presses, injection mold machines, blister machines and other continuous feed manufacturing equipment for inline bagging.


More Options


BO-10 Bag "Out" Sensor: Detects the last bag off the roll and shuts down the bagger, while alerting the operator of the fault condition.

BO-20 Bag "Open" Sensor: (AF-10 Funnel required.) Detects whether the bag has properly blown open prior to the product entering the bag.

CB-10 Compartment Seal Option: Separate two products in one bag by creating a seal between two compartments. After the first product is loaded, press the foot switch to seal the first product in the bag. Then load the second product, and press the foot switch to index the bag and seal the bag a second time above the second product. The bag is then detached and another bag is indexed into the loading position.

OFS-10 Output Fault Signal: Signal is provided to advise third party equipment that a fault condition (i.e.: out of bags, jam detection, printer error) is present on the T-1000 bagger and to cease production operations. Audible or visual signals can also be provided to alert the operator.

TS-10 Trim Seal Assembly: Trims excess film from bag above seal to enhance the appearance of the package (retail products).

TW-10 Twin-Seal Option: Automatically seals the bag a second time, 3/4" from the first seal to increase bag integrity.

VA-10 Vacuum Bag Opening Assembly: When air flow is not sufficient to open the bag, or when air cannot be used to open the bag, vacuum tips do the job. Tips protrude to the bag and retract pulling the bag open. Air flow can be shut off for products affected by air flow.
